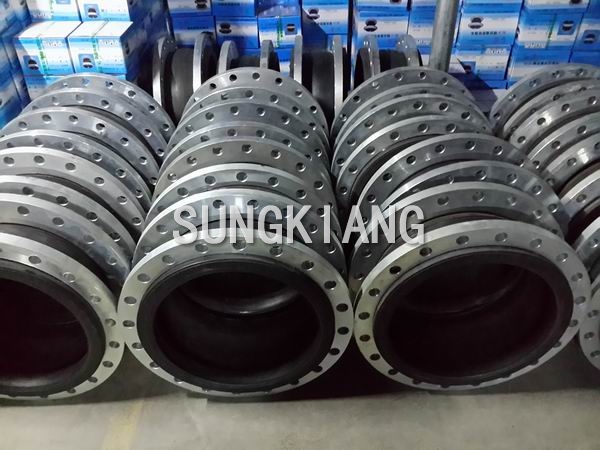

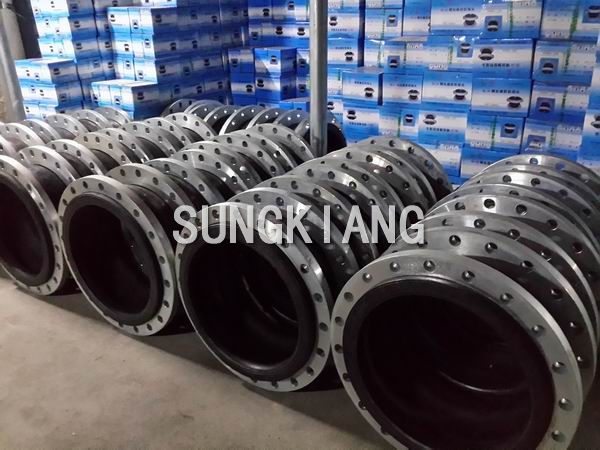

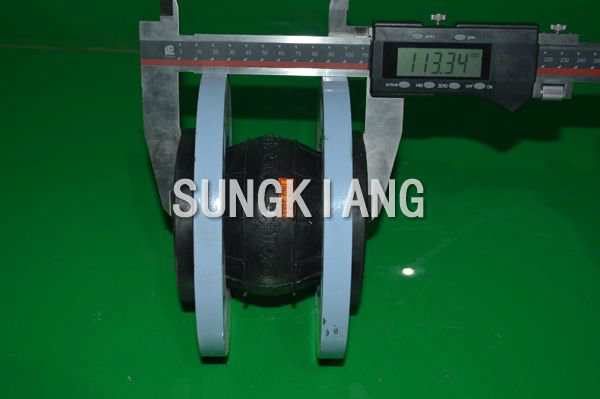

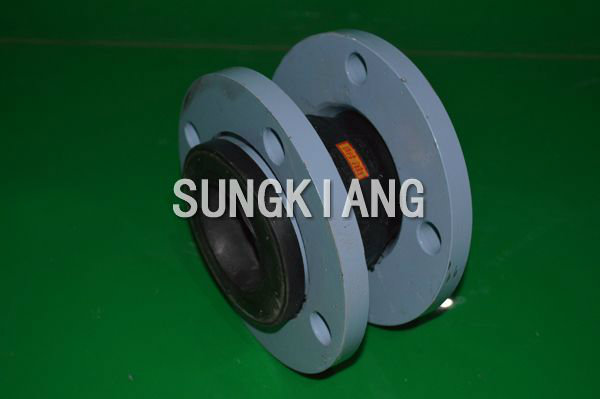

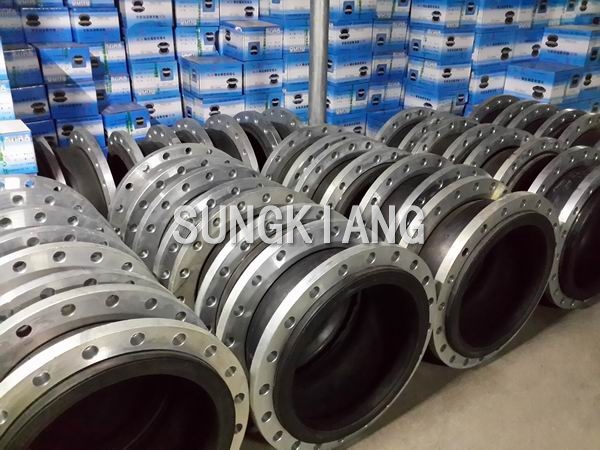

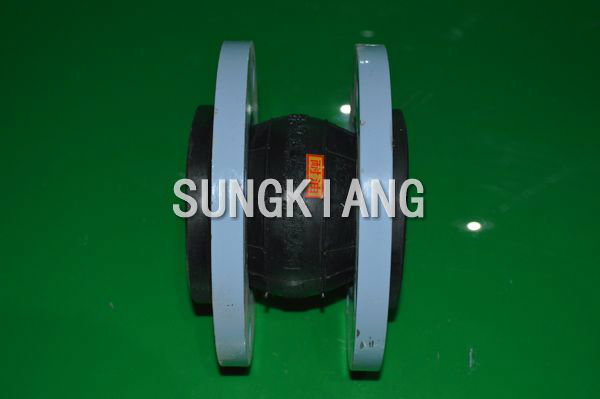

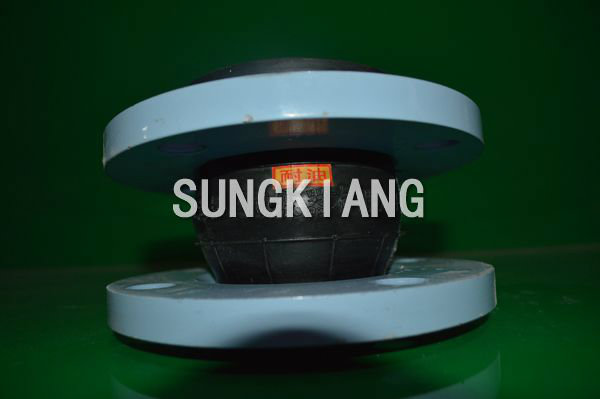

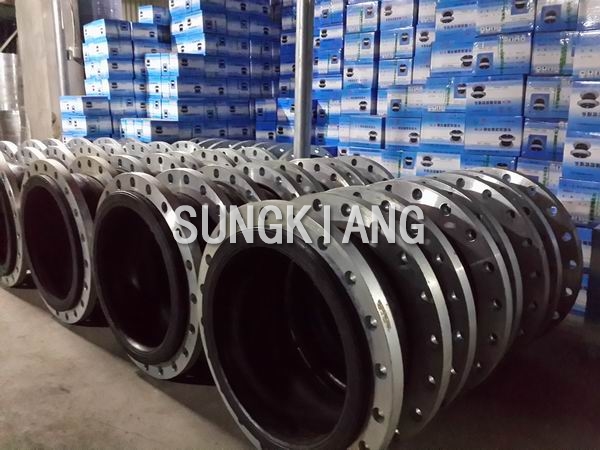

以下為公司耐油橡膠軟連接發貨照片：
二、耐油橡膠軟連接規格尺寸:
|
公稱通徑DN |
長度Lmm |
螺絲數n |
螺栓孔直徑mm |
螺栓孔中心圓直徑mm |
軸向位移mm |
橫向位移mm |
偏轉角度（a1+a2） |
||
|
mm |
Inch |
伸長 |
壓縮 |
||||||
|
25 |
1 |
95 |
4 |
14 |
85 |
6 |
9 |
9 |
15 |
|
32 |
1 1/4 |
95 |
4 |
18 |
100 |
6 |
9 |
9 |
15 |
|
40 |
1 1/2 |
95 |
4 |
18 |
110 |
6 |
10 |
9 |
15 |
|
50 |
2 |
105 |
4 |
18 |
125 |
7 |
10 |
10 |
15 |
|
65 |
2 1/2 |
115 |
4 |
18 |
145 |
7 |
13 |
11 |
15 |
|
80 |
3 |
135 |
4 |
18 |
160 |
8 |
15 |
12 |
15 |
|
100 |
4 |
150 |
8 |
18 |
180 |
10 |
19 |
13 |
15 |
|
125 |
5 |
165 |
8 |
18 |
210 |
12 |
19 |
13 |
15 |
|
150 |
6 |
180 |
8 |
23 |
240 |
12 |
20 |
14 |
15 |
|
200 |
8 |
210 |
8 |
23 |
295 |
16 |
25 |
22 |
15 |
|
250 |
10 |
230 |
12 |
23 |
350 |
16 |
25 |
22 |
15 |
|
300 |
12 |
245 |
12 |
23 |
400 |
16 |
25 |
22 |
15 |
|
350 |
14 |
255 |
16 |
23 |
460 |
16 |
25 |
22 |
15 |
|
400 |
16 |
255 |
16 |
25 |
515 |
16 |
25 |
22 |
15 |
|
450 |
18 |
255 |
20 |
25 |
565 |
16 |
25 |
22 |
15 |
|
500 |
20 |
255 |
20 |
25 |
620 |
16 |
25 |
22 |
15 |
|
600 |
24 |
260 |
20 |
30 |
725 |
16 |
25 |
22 |
15 |
|
700 |
28 |
260 |
24 |
30 |
840 |
16 |
25 |
22 |
15 |
|
800 |
32 |
260 |
24 |
34 |
950 |
16 |
25 |
22 |
15 |
|
900 |
36 |
260 |
28 |
34 |
1050 |
16 |
25 |
22 |
15 |
|
1000 |
40 |
260 |
28 |
34 |
1160 |
18 |
26 |
24 |
15 |
|
1200 |
48 |
260 |
32 |
41 |
1380 |
18 |
26 |
24 |
15 |
|
1400 |
56 |
260 |
36 |
34 |
1560 |
20 |
28 |
26 |
15 |
|
1600 |
64 |
350 |
40 |
34 |
1760 |
25 |
28 |
30 |
10 |
|
1800 |
72 |
400 |
44 |
41 |
1970 |
25 |
30 |
30 |
10 |
|
2000 |
80 |
450 |
48 |
48 |
2180 |
25 |
30 |
30 |
10 |
|
2200 |
88 |
500 |
52 |
43 |
2390 |
25 |
35 |
30 |
10 |
|
2400 |
96 |
500 |
56 |
43 |
2600 |
25 |
35 |
30 |
10 |
|
2600 |
104 |
500 |
60 |
48 |
2810 |
25 |
35 |
30 |
10 |
|
2800 |
112 |
500 |
64 |
48 |
3020 |
25 |
35 |
30 |
10 |
|
3000 |
120 |
500 |
68 |
48 |
3220 |
25 |
35 |
30 |
10 |
|
3200 |
128 |
500 |
72 |
36 |
3430 |
25 |
35 |
30 |
10 |
